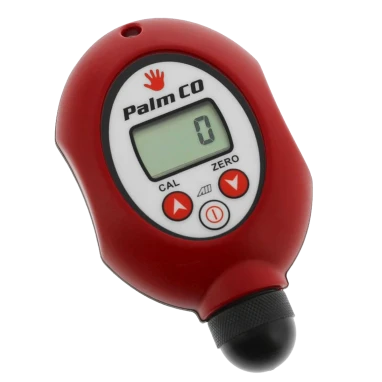

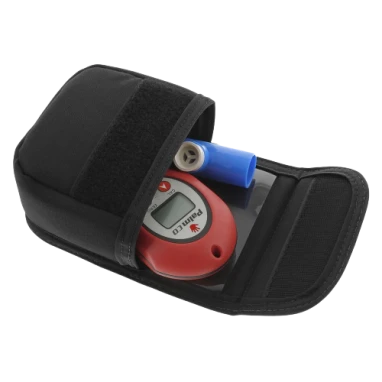

PALM-CO Carbon Monoxide Analyzer

The AII Palm CO oxygen analyzer is a simple and cost-effective choice to check for carbon monoxide in compressed air breathing tanks intended for scuba diving. With only two buttons and one-touch calibration, the Palm CO is easy to use.

The analyzer uses an electrochemical carbon monoxide sensor intended to measure CO levels in gas streams. Carbon monoxide, diffusing into the sensor through a gas permeable barrier, reacts chemically at the sensing electrode to produce an electrical current output proportional to the CO concentration in the gas phase. A battery-powered micro-processor converts the sensor’s signal output, which represents the partial pressure of CO in the gas stream being analyzed. The resulting reading is displayed on an easy-to-read screen with a resolution of 1 PPM carbon monoxide.

Features:
• 0-25 ppm CO measurement range
• ±2 ppm accuracy
• 0.5 ppm CO sensitivity (LDL)
• ±1% linearity under constant conditions
• 800-1200 mbara (11.6-17.4 psig) inlet pressure
• 0.2-10 Nl/min (0.4-20 SCFH) flow rate

Measurement Range 0-25 ppm CO
Accuracy < ±2 ppm under constant conditions
Response Time T90 < 30 seconds
Sensitivity (LDL) 0.5 ppm CO
Linearity ±1% under constant conditions
Sensor Model OSV-22-AF
Sensor Life at 25°C (77°F) and 1 Atmosphere 24 months in air 5°C (77°F) at 1 atmosphere
Calibration Interval Certified span gas mixture of CO concentrations between 10-20 ppm with balance air.
Inlet Pressure 800 1200 mbara (11.6-17.4 psig)
Flow Rate (Constant) 0.2-10 Nl/min (0.4-20 SCFH)
Gas Connections Supplied with Dome adapter (A-3388) with optional BC adapter (A-3671)
Display 2 digit LCD 2.8 x 1.6cm (1.1 x 0.625″); resolution 1 ppm CO
Dimensions 6.9 x 10.4 x 3.4cm (2.72″ x 4.1″ x 1.35″)
Weight 196g (7oz)
Alarms User adjustable HI and LO alarms (AII-3000 M and MHC only)
Storage Temperature 3°C to 35°C (37.4°F to 95°F)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Power 2 AA alkaline batteries
Battery Life Up to 450 hrs of continual use
Humidity Non-condensing 0-95% RH
Warm Up Time 60 Seconds
